Guide editor open with the data transmission icon highlighted
Data transmission menu with the data to send dropdown open
Data transmission menu with the Target option highlighted
Guide editor open with the data transmission icon highlighted

Set up data transmission

To enable data transmission in a step, follow these instructions:

  1. Open a guide in Stonly.

  2. Go to the step where you wish to record data.

  3. Click on the data transmission icon above the content block.

  4. Select Data to send and define Target.

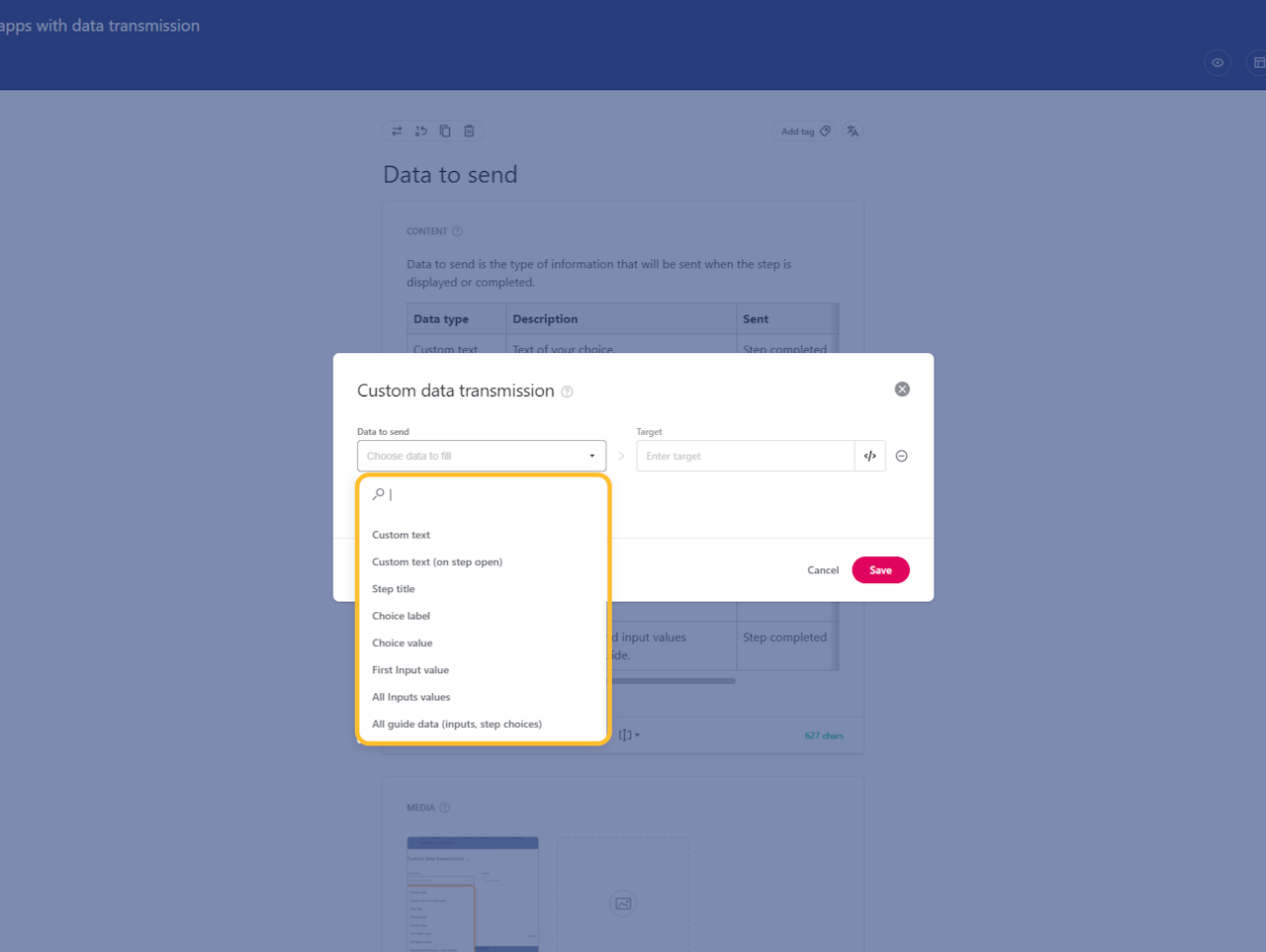

Data transmission menu with the data to send dropdown open

Data to send

Data to send is the type of information that will be sent when the step is displayed or completed.

Data type

Description

Sent

Custom text

Text of your choice.

Step completed

Custom text (on step open)

Text of your choice.

Step open

Step title

Title of the current step.

Step open

Choice label

Label of the button.

Button clicked

Choice value

Label of the button (language-independent)

Button clicked

Input value

Contents of the user input.

Step completed

All guide data

All user choices and input values provided in the guide.

Step completed

Choice label vs Choice value

Choice label is tied to the guide's language. If you have different labels on buttons for each language version of the guide, your Target will receive them as separate entries.

Choice value is a way to send a language-independent entry.

To create a choice value:

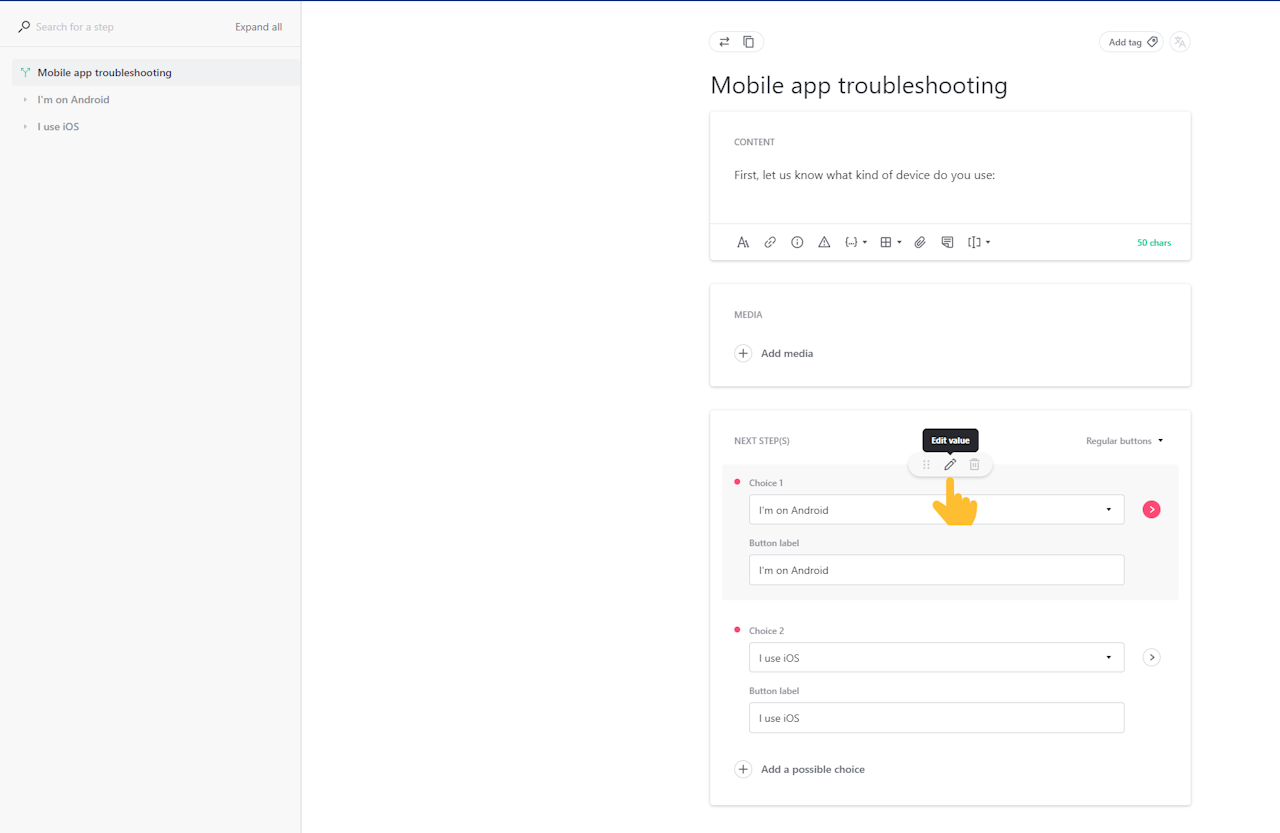

  1. In the guide editor, hover over the Next step to which you will assign the value.

  2. Click Edit value.

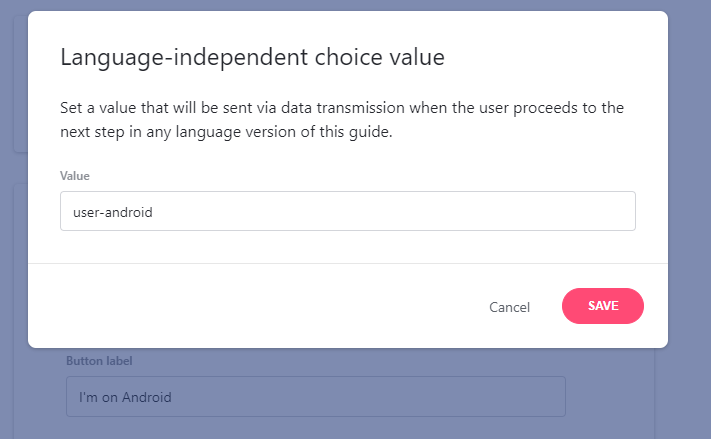

  3. Name the value and click Save.

This value will now be sent every time the users make this choice, regardless of the guide language.

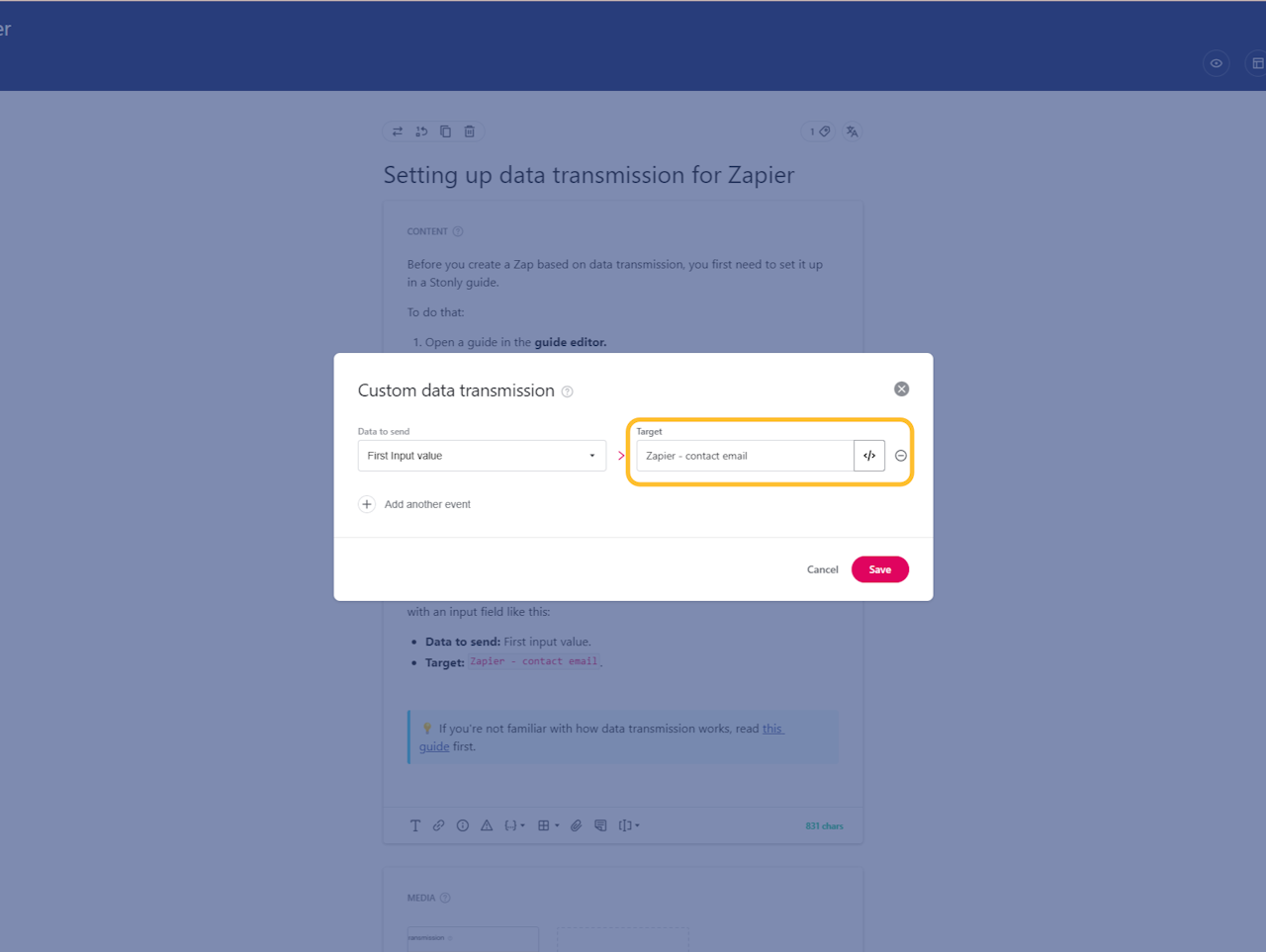

Data transmission menu with the Target option highlighted

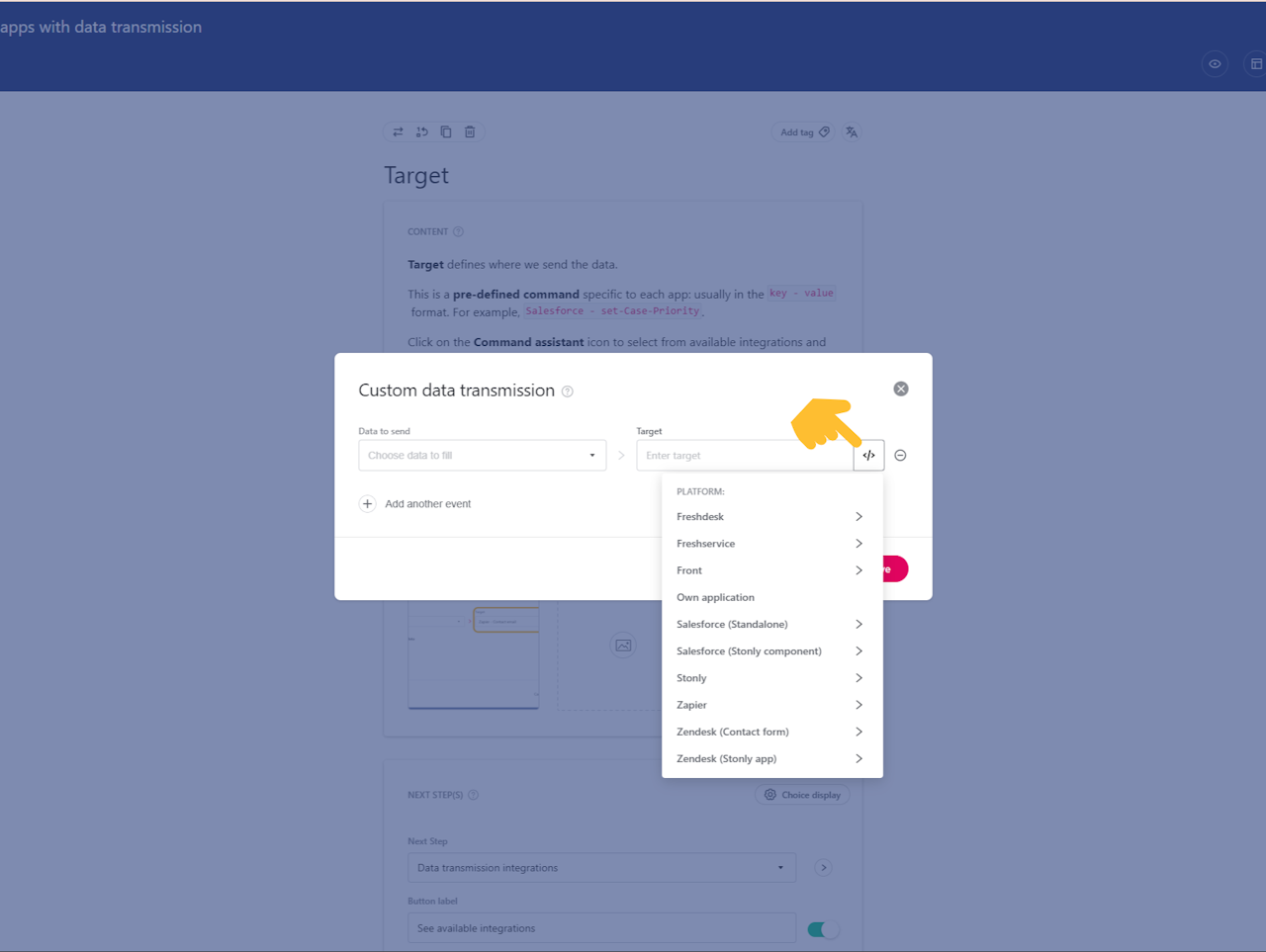

Target

Target defines where we send the data.

This is a pre-set key that you will have to copy from guides for relevant integrations.
