HomeWorking with the Tables signature element

How to access it

1. Open your signature in the Signature Designer.
   For more information, see how to select a signature to edit.

2. From the toolbox, expand Tables.

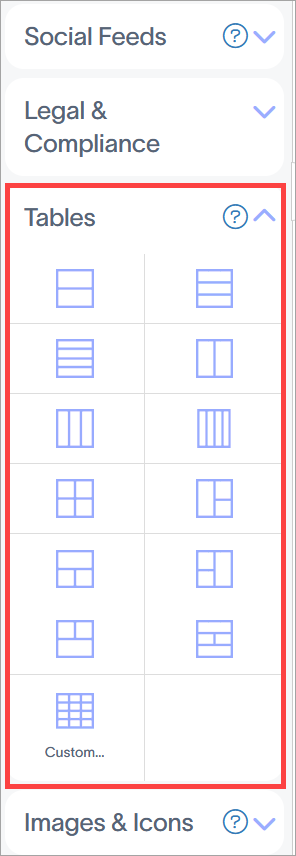

   _{The Tables elements are found in the Tables section.}

Select an option below to view the related instructions:

Adding a table

To add a table to the signature:

1. Drag and drop a table shape onto your canvas. To create a custom table, drag and drop the Custom.. element.

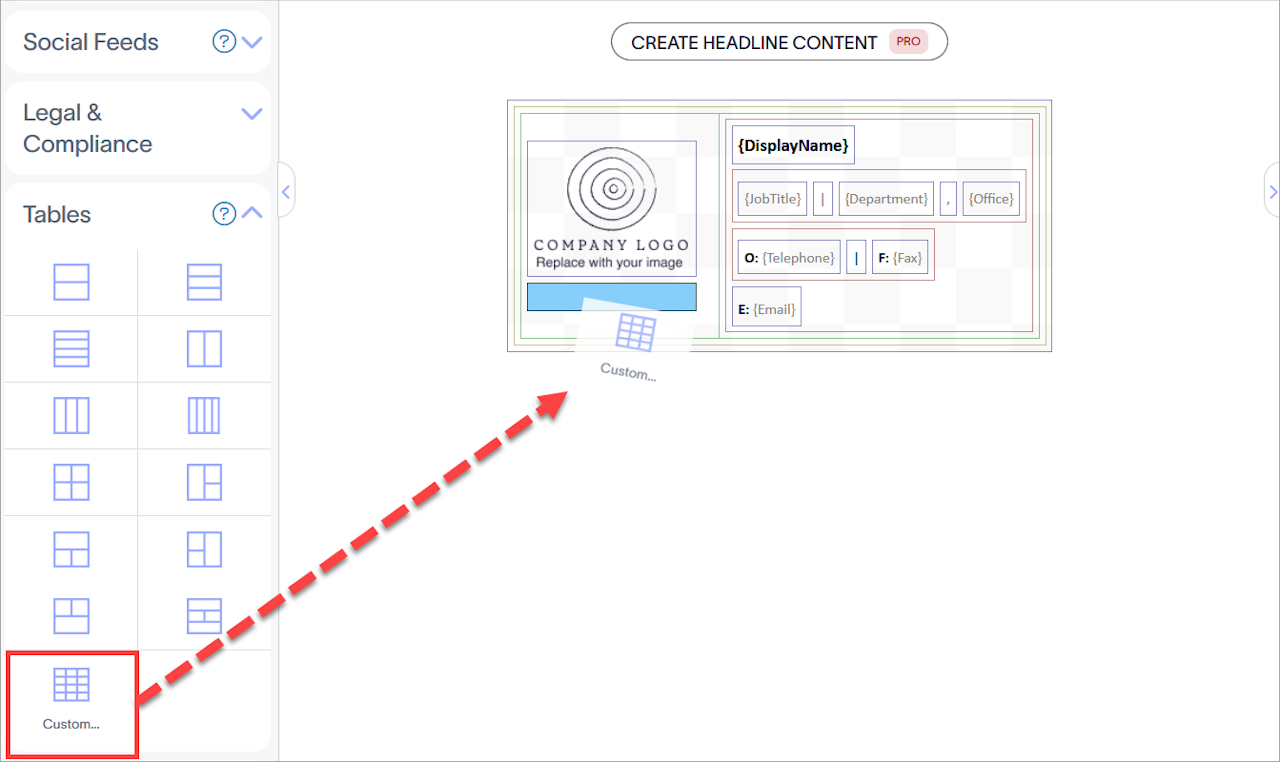

   _{Drag and drop the table or the Custom... element to where you would like it to be on the canvas.}

2. If adding a custom table, this opens the Custom window. In the Columns field, enter the number of columns you want the table to have.

3. In the Rows field, enter the number of rows you want the table to have.

4. Select OK to add the custom table to the canvas.

Editing a table

You can use the Properties pane to add and remove rows and columns, alter row and column widths and heights, and merge cells.

To add or remove individual rows and columns:

1. Select a cell within the table.

2. Select ROWS & COLUMNS to open the drop-down list.

3. Select an option to delete the currently selected row/column, or insert a new row/column above, below, or to the left or right of the currently selected cell.

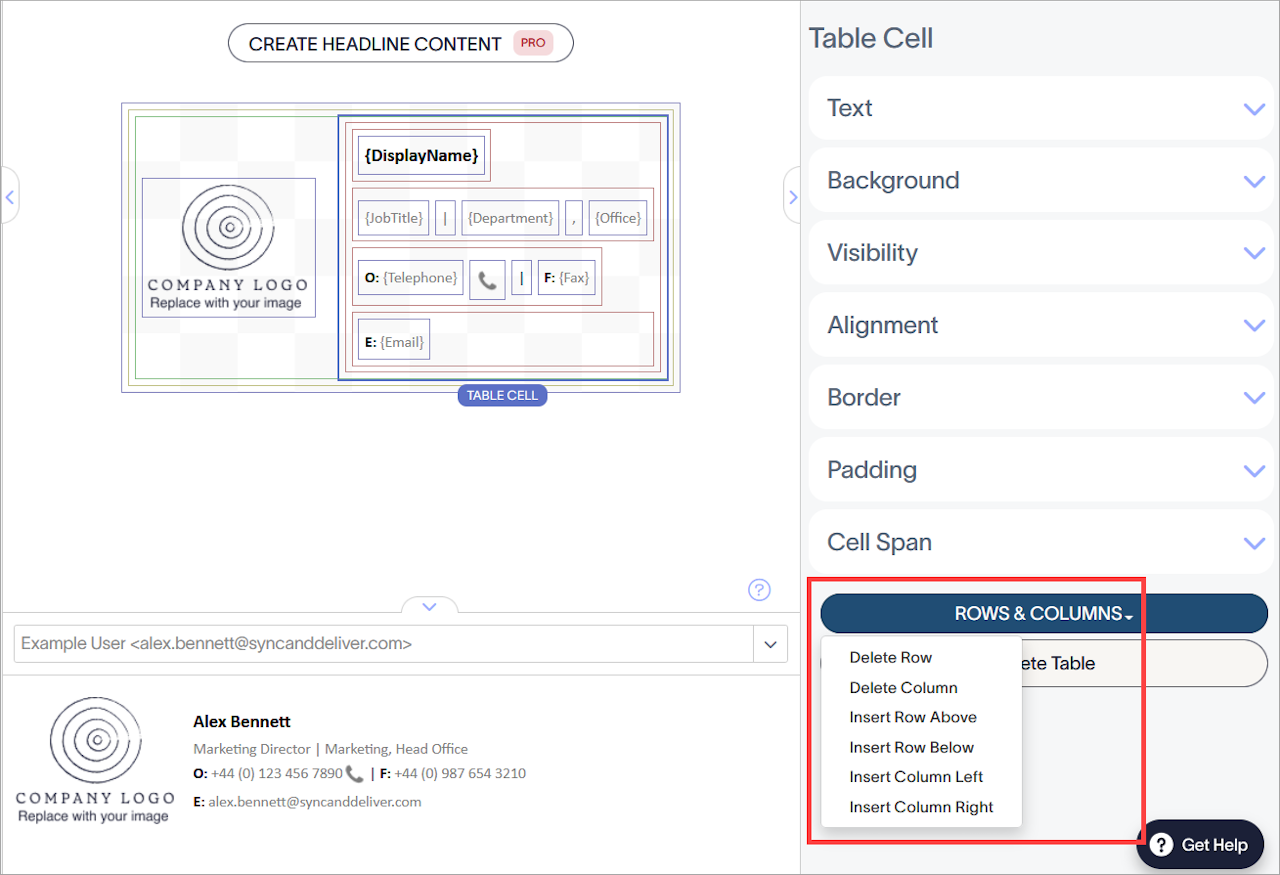

   _{The ROWS & COLUMNS drop-down allows you to edit rows and columns respective of the current cell.}

To add or remove multiple rows and columns:

1. Select the table.

2. In the Properties pane, expand Rows and Columns.

3. Enter a value or use the arrows to increase/decrease the current value in the Rows or Columns fields.

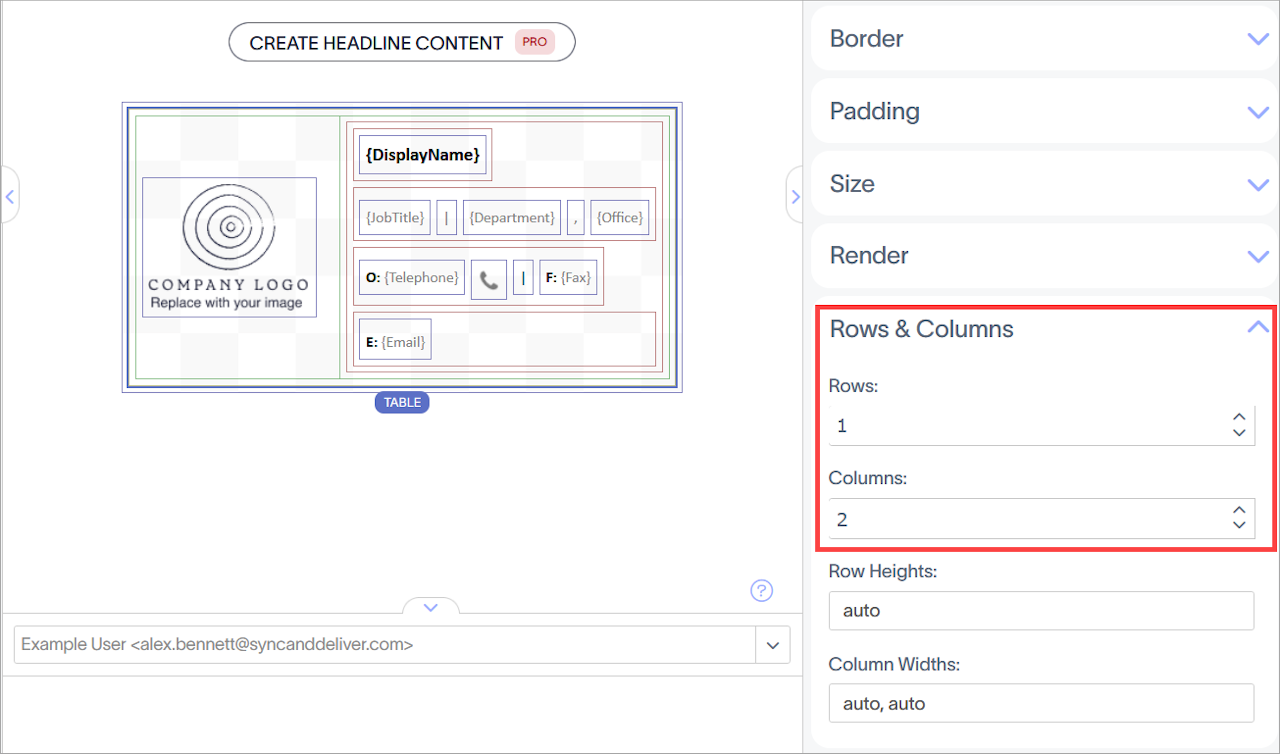

   _{Enter or edit the number of rows and columns to adjust your table.}

To adjust a row height or width:

1. Select the table.

2. In the Properties pane, expand Rows and Columns.

3. Enter a value in Row Heights or Column Widths as appropriate. The values are listed individually for each row and/or column, separated by a comma. To adjust a specific row or column, edit the value in the appropriate place in the list. For example, to adjust the row height for the second row out of four, edit the value that is second in the list.

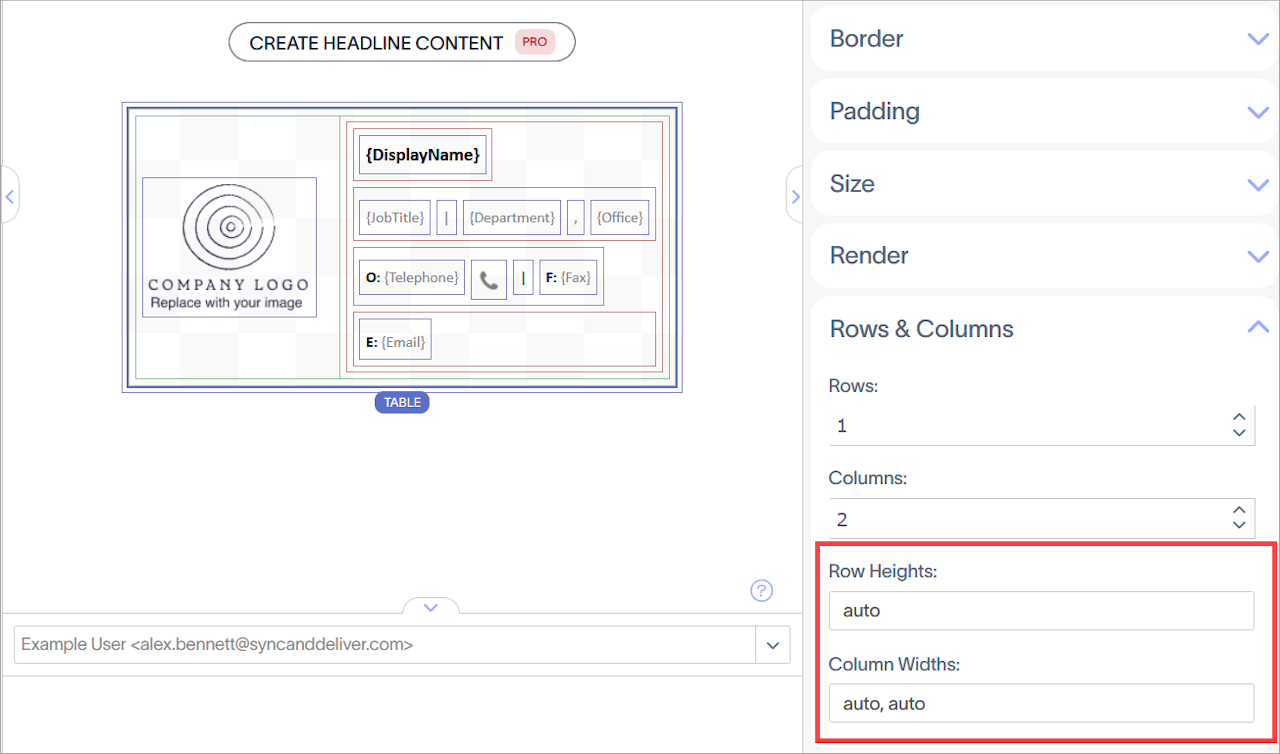

   _{Enter or edit the heights and widths to adjust your rows and columns.}

To merge cells:

1. Select a cell within the table.

2. From the Properties pane, expand the Cell Span section.


3. Enter a value or use the arrows to increase/decrease the current value in the Row span and Column span fields.

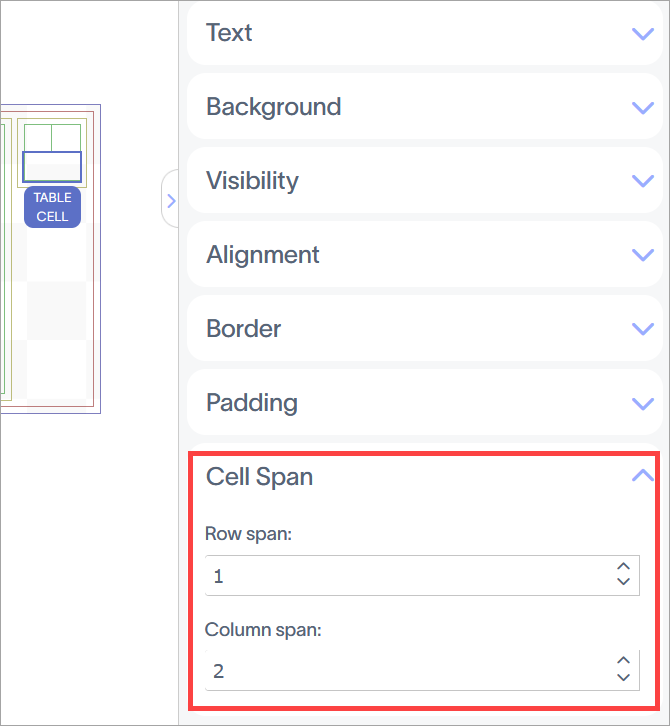

   _{A sample table showing a merged cell that is 2 columns wide.}


Deleting a table

To delete a Table element:

1. Select the element on the canvas.


2. Select Delete from the Properties pane.

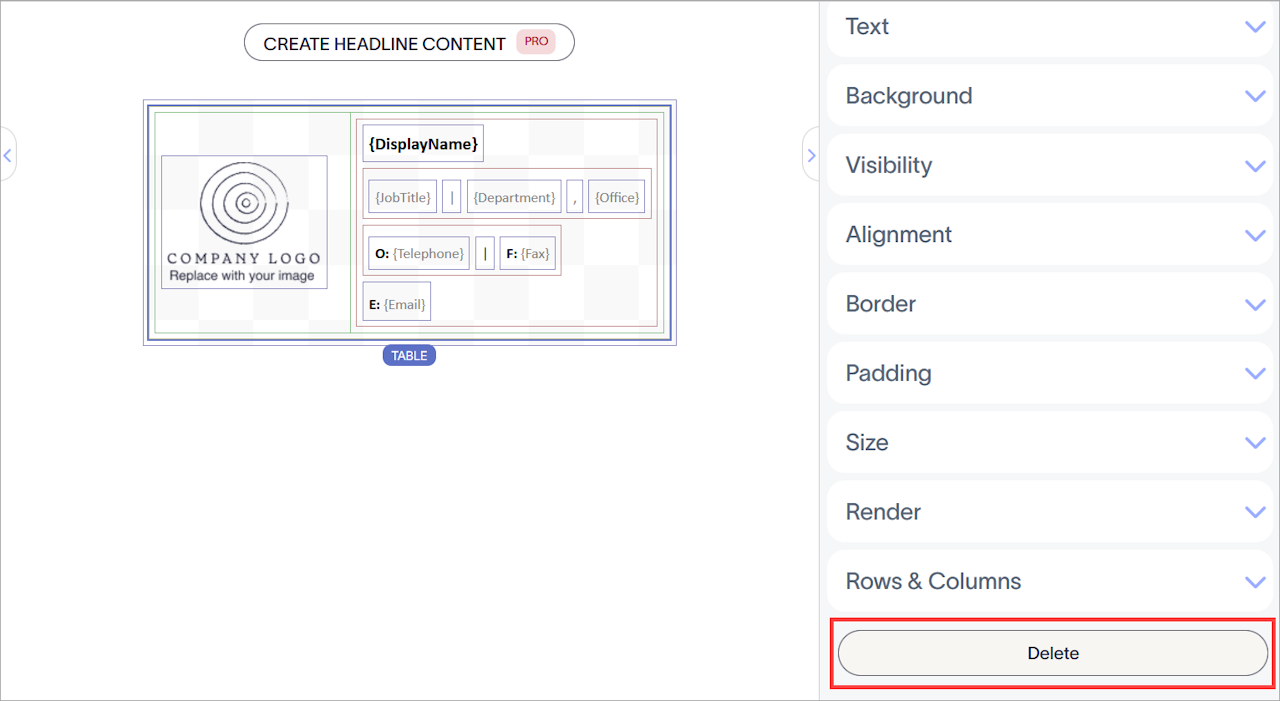

   _{Select Delete to remove a table.}
